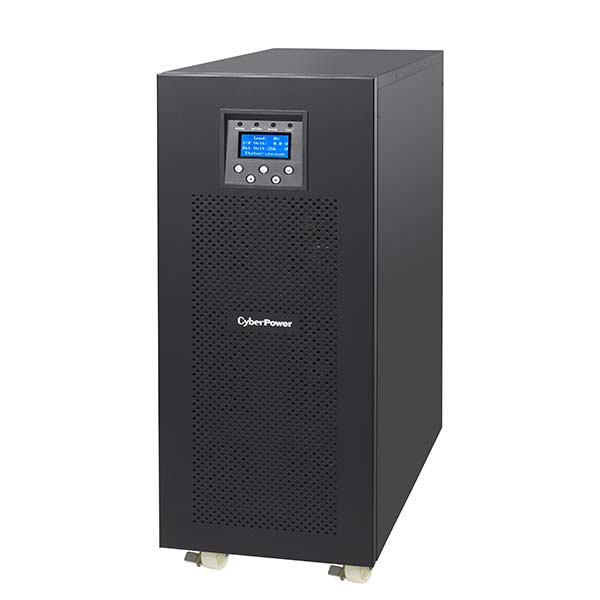

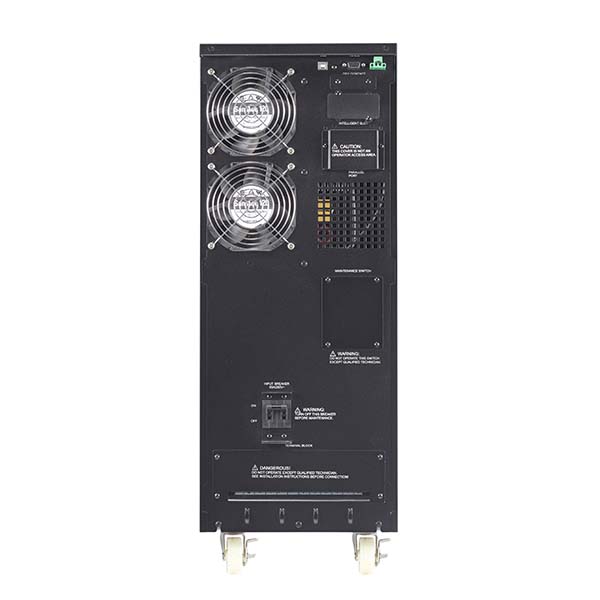

OL10000E
| Model | OL10000E |
| Capacity(VA/W) | 10000VA / 9000W |
| Typology | Online (Double Conversion) |
| Form Factor | Tower |
| Energy-Saving Technology | Yes, ECO Mode Efficiency ＞ 95% |
| Input | |
| Voltage Range | 120~139Vac for 0~25% Load 140~159Vac for 0~50% Load 160~179Vac for 0~75% Load 180~280Vac for 0~100% Load |
| Frequency Range | 40~70Hz |
| Input Plug Type | (1) Terminal Block |
| Output | |
| Voltage Range | Pure Sinewave at 200, 208, 220, 230, 240Vac (Configurable) ±2% |
| Frequency Range | 50 / 60Hz (Auto-Sensing or Configurable) ±0.25Hz |
| Transfer Time (Typical) | 0ms |
| Overload Protection | Line Mode:105~125% Load for 1 min, 126~150% Load for 10 secs Battery Mode:105~130% Load for 10 secs, 131~150% Load for 2 secs |
| Surge Protection and Filtering | |
| Lightning / Surge Protection | Yes |
| DSL/Phone/Fax/Modem protection | RJ11/RJ45(One In/One Out) |
| Short Circuit Protection | UPS Output Cut Off Immediately |
| Physical | |
| Receptacles | (8) IEC C13, (2) IEC C19, (1) Terminal Block |
| Dimensions(H x W x D)(mm) | 616 x 265 x 660 |
| Weight(kg) | 97 (Battery included) |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | 12V / 9AH x 20 |
| Hot-Swappable | Yes |
| Typical Recharge Time | 5 Hours |
| Runtimes | |
| Half-load / Full-load (mins) | 12.5/4.3 |
| Status Indication | |
| Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Multi-Function LCD Readout | Yes |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| Auto-Overload Recovery | Yes |
| Cold Start(DC Start) | Yes |
| COM Interface | (1) Serial Port (RS232), (1) USB Port, (1) Remote Control Port, (1) Relay Out, (1) EPO, (1) Backfeed |
| SNMP/HTTP Capable | Optional |
